SPECIFICATIONS

Type: Solar Panel

Number of Panels: 1

Number of Cells: 36

Max. Power: 300W

Foldable Solar Panel: Yes

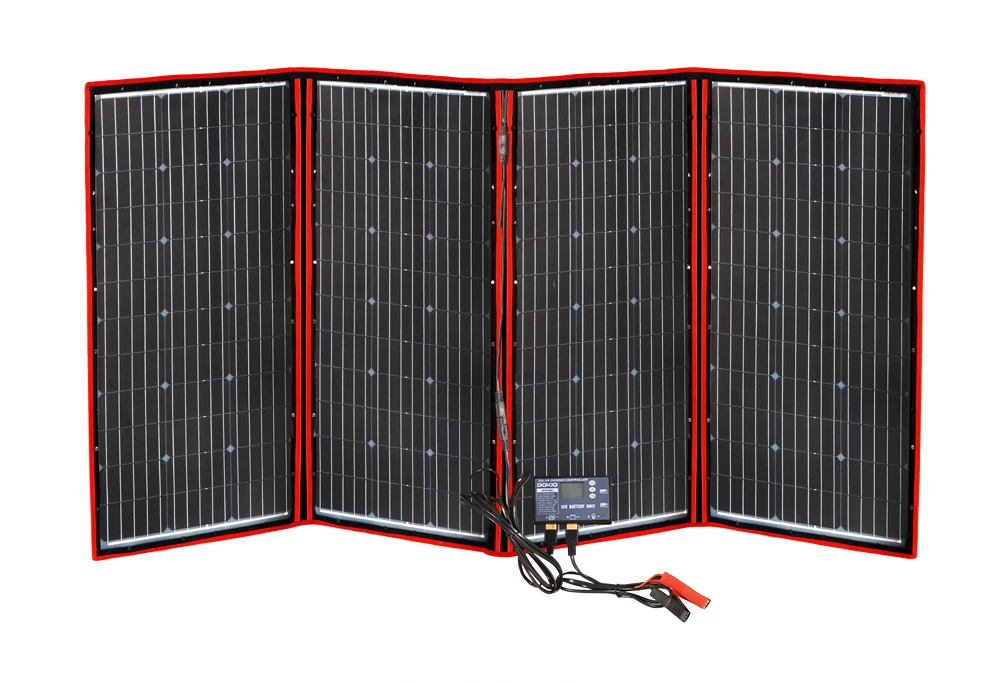

Model:FFSP-320M

Material:Monocrystalline silicon

Maximum Power(Pmax): 300W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):16.67A

Open-Circuit Voltage (Voc): 22.50V

Short-Circuit Current (Isc):16.92A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:39.37x19.69x0.94(in)/100x50x2.4(cm)

Expansion Dimension:78.74x39.37x0.24(in)/200x100x0.6(cm)

Net Weight:7.1kg

Package Weight:8.2kg

Package Size:108x57x7cm

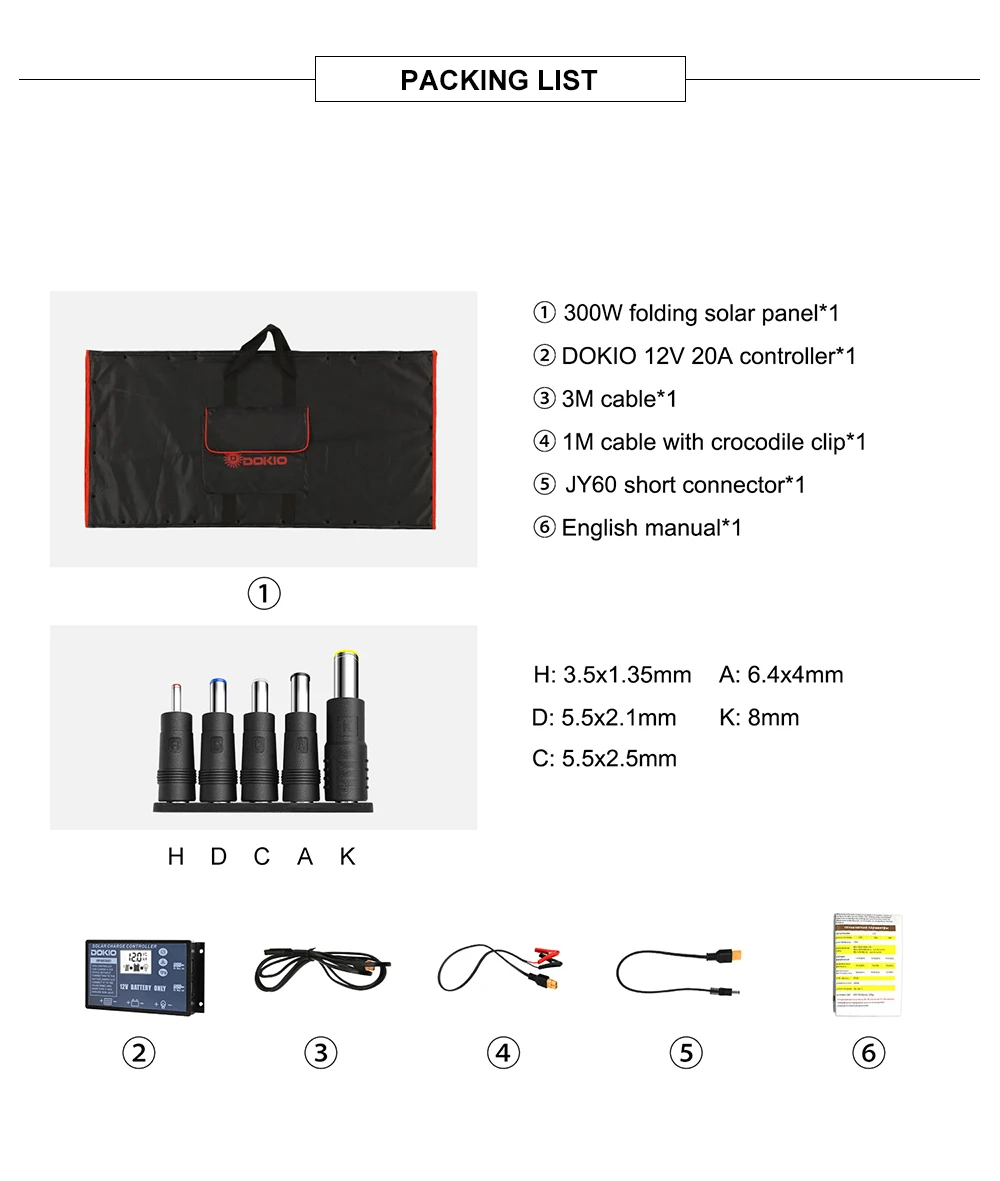

Package List:

1*300W Flexible Foldble Solar Panel

A total of 4M long cable. With alligator clips.

1*20A 12Vcontroller

1*English User Manual

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

(The size is manually measured and there is a certain error.）

Controller support 12V lead-acid,lithium ions and LiFePO4 battries.

The controller cannot be used to test solar panels.Under sufficient light conditions, a multimeter should be used for no-load test.

Model:36VFFSP-320M

Material:Monocrystalline silicon

Maximum Power(Pmax): 300W±3%

Maximum Power Voltage(Vmp):36.00V

Maximum Power Current (Imp):8.89A

Open-Circuit Voltage (Voc): 45.00V

Short-Circuit Current (Isc):9.14A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:39.37x19.69x0.94(in)/100x50x2.4(cm)

Expansion Dimension:78.74x39.37x0.24(in)/200x100x0.6(cm)

Foldable Dimension:92*45

Expansion Dimension:

Net Weight:8.2kg

Package Weight:9.2kg

Package Size:1055x510x4cm

Package List:

1*300W Flexible Foldble Solar Panel

1*3M wire,1*10A 24Vcontroller

1*English User Manual

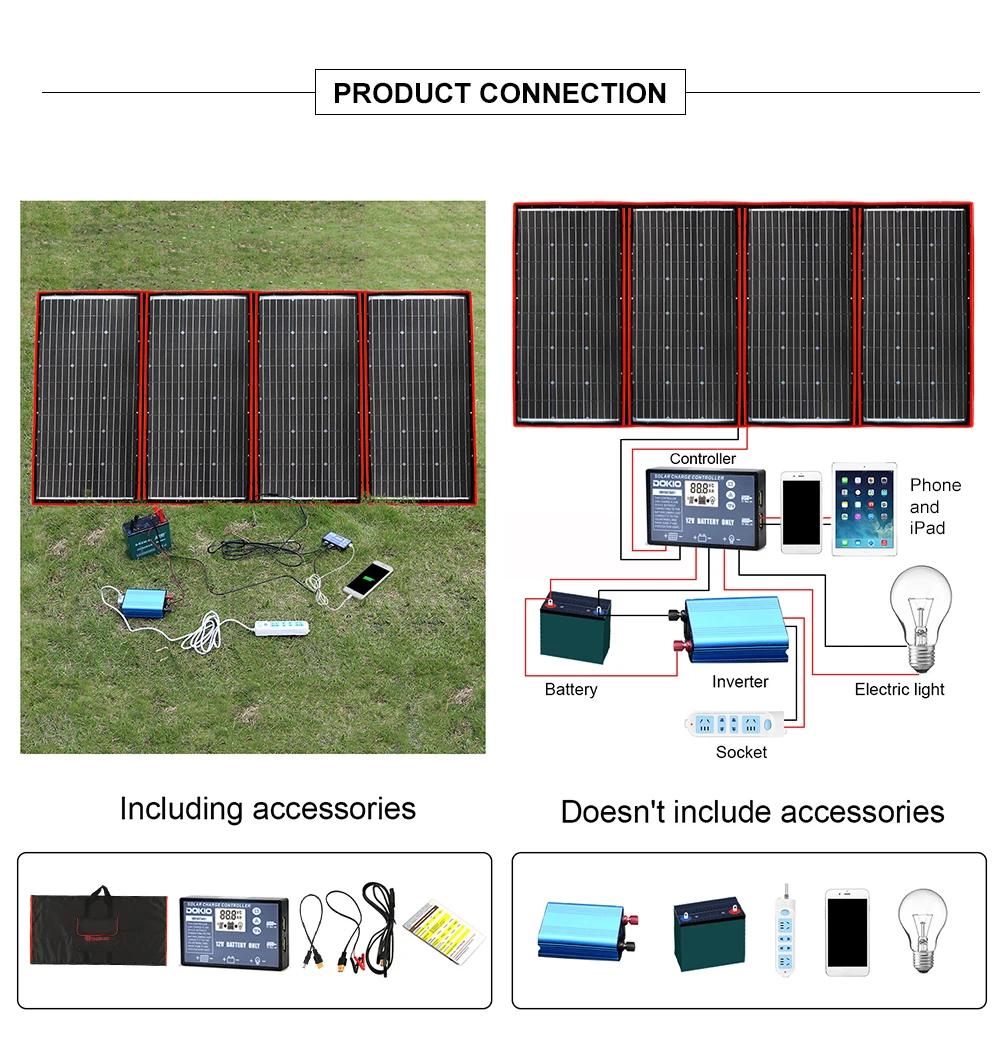

Controller

The USB output of the controller is 5V / 2A.

Ability to charge mobile phones and iPads.

If you want to charge your computer, you need to connect the battery

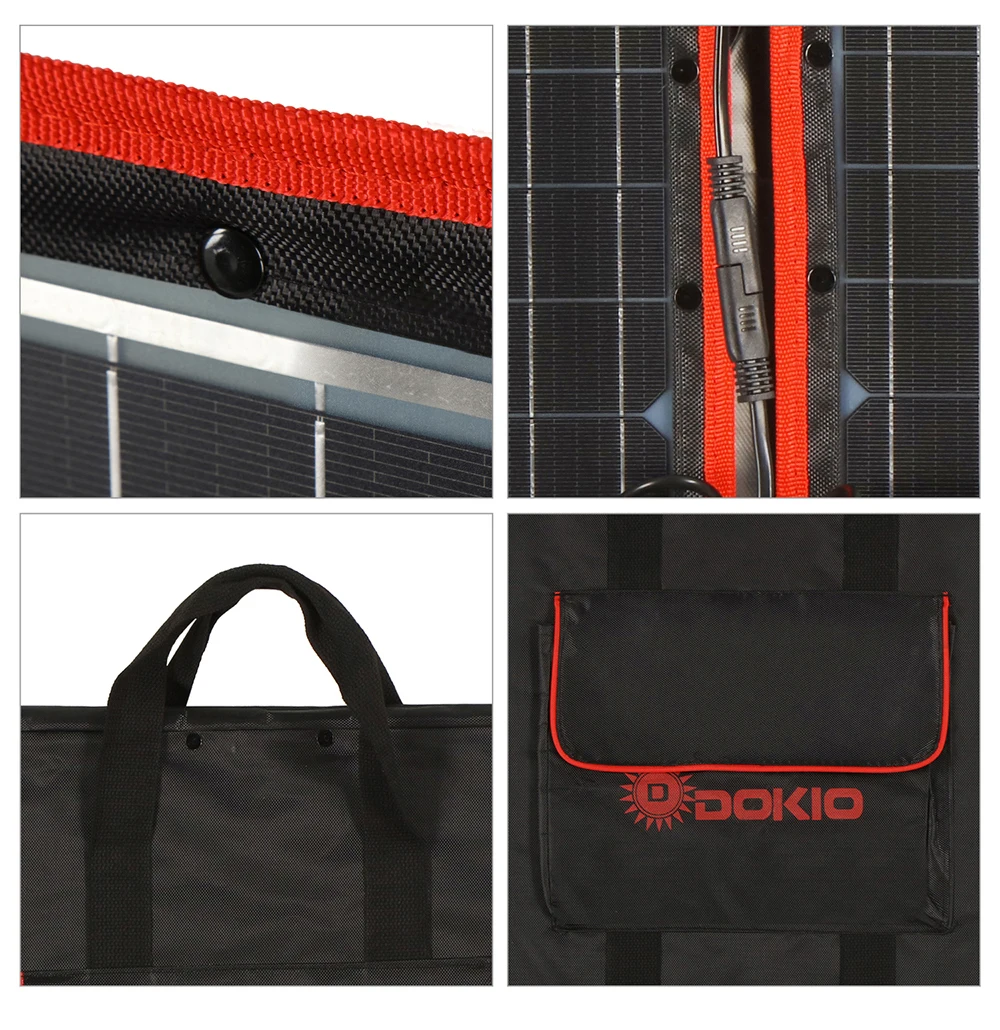

Maintenance of flexible folding solar panels:

1.In order to avoid friction on the folded surface, a soft plastic film can be added between the contact surface of the panel and the panel.

2.Since the flexible folded solar panels are too light, be careful not to be blown away by the wind when used outdoors.

3.Flexible folding solar panels have waterproof function but cannot be immersed in water.

4.As the development of FFSP (Flexible Foldable Solar Panel) is based on portable functionality, it is supplemented by fixed installation. All of our materials are basically waterproof and moisture-proof, but long-term immersion is strictly prohibited, especially the surface cloth, which will quickly degrade due to the use of chemical agents such as salt water, which need to be recovered immediately after use and stored in a cool and dry place.
